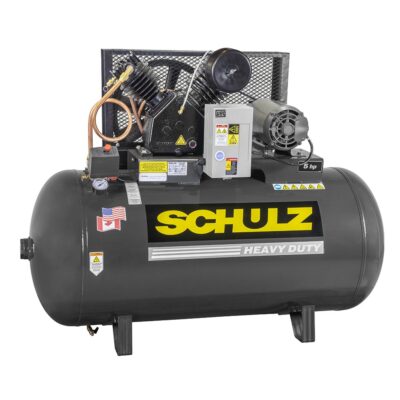

SCHULZ Air Compressor 580HV20X-1 5HP, 1-Phase, 20 CFM, V-Series 2-Stage, 80 Gal Horizontal, 230V

• SCHULZ V-SERIES, 5HP TWO-STAGE, 80 GALLON HORIZONTAL COMPRESSOR
• 20 CFM, 2-CYLINDER, 175 PSI SPLASH LUBRICATED RECIPRICAL COMPRESSOR PUMP
• POWERED BY A HEAVY DUTY WEG 230V, 184T FRAME SINGLE PHASE ELECTRIC MOTOR
• INCLUDES FULLY WIRED WEG MAGNETIC MOTOR STARTER, FULL SYNTHETIC OIL & TANK KIT PACKAGE
• 56″ L X 23″ W X 42″ H, 450 LBS, PROFESSIONAL INSTALLATION REQUIRED

Schulz 2-Stage Industrial Grade 580HV20X-1 Heavy Duty 5HP Horizontal 80 Gallon Air Compressor
Single Phase 230 Volt 932.9345.05 HP Reciprocating Compressor Pump with a 20 CFM Flow Rate
175 PSI Maximum Operating Pressure. Mounted 230 Volt magnetic motor starter and 230 Volt Industrial Grade 184T Frame Weg electric motor.
If your incoming voltage is 208V or below, please contact us.

All Cast Iron Construction.
2 Cylinder V-Type Piston Compressor Pump comes with a 2-year warranty.
100% Cast iron pump splash lubricated with High efficiency inter-cooler.
Powder coated 80-gallon vertical air tank (ASME CERTIFIED) 20 CFM displacement, 175 PSI.

We include 2 Quarts of Full Synthetic Compressor Oil, (1) Full Port Ball Valve for your tank outlet, (4) Anti-Vibration isolation pads and a manual tank drain kit.
*Professional Installation is required. Always consult your electrician for proper installation and proper wiring.
Warranty: 2 years on the cast iron pump (with proper maintenance); 1 year on all the other components.

WEG Electric Motor
SCHULZ AIR COMPRESSOR 5HP SINGLE PHASE, 208-230 VOLTS
5 HP motor reliably handles commercial duty demands.
V-Series Cast Iron Pump
Runs cooler, lasts longer due to the space between each cylinder.
Deeper cylinder fins for additional heat dissipation.
Oversized Main Bearings
Sturdy & reliable
Swedish Steel Valves
Quality components contribute to pump efficiency.
CNC Machined Components
Accurate fit produces top-notch performance.
Notched Belts Standard.
Enclosed belt guard protects the belt & operators.
Powder Coated Components
Resists rust & corrosion.
1-Year Unit Warranty with 2-Year Pump Warranty.
