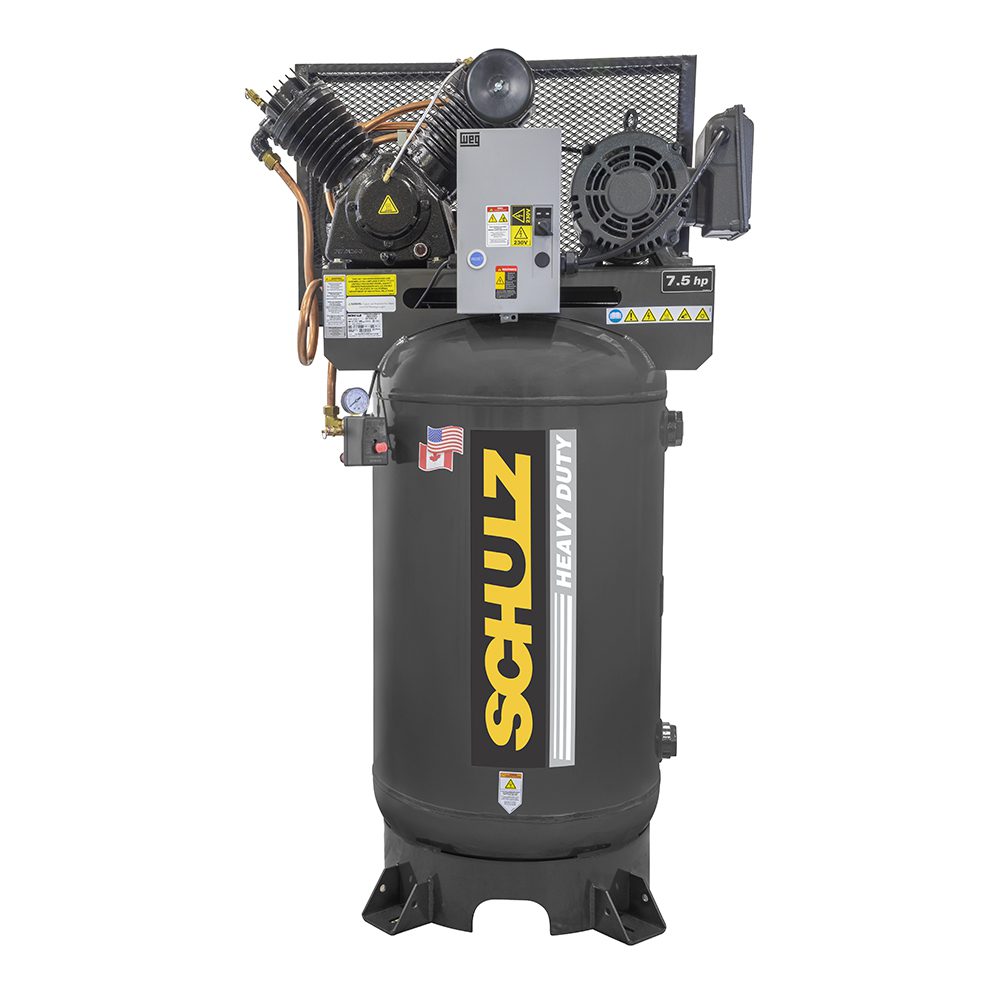

SCHULZ 7580VV30X-3 7.5HP Air Compressor, 30 CFM, 3-Phase 2-Stage, 80 Gal Vertical, 230V

• SCHULZ V-SERIES, 7.5HP TWO-STAGE, 80 GALLON VERTICAL COMPRESSOR
• 30 CFM, 2-CYLINDER, 175 PSI SPLASH LUBRICATED RECIPRICAL COMPRESSOR PUMP
• POWERED BY A HEAVY DUTY WEG 230V, 215T FRAME THREE PHASE ELECTRIC MOTOR
• INCLUDES FULLY WIRED WEG MAGNETIC MOTOR STARTER, FULL SYNTHETIC OIL & TANK KIT PACKAGE
• 39″ L X 25″ W X 76″ H, 584 LBS, PROFESSIONAL INSTALLATION REQUIRED

Schulz 2-Stage Industrial Grade 7580VV30X-3 Heavy Duty 7.5HP Vertical 80 Gallon Air Compressor
Three Phase 230 Volt  932.9342-0

7.5 HP Reciprocating Compressor Pump with a 30 CFM Flow Rate
175 PSI Maximum Operating Pressure.
Mounted 230Volt magnetic motor starter and 230 Volt Industrial Grade 215T Frame Weg electric motor. If your incoming voltage is 208V or below, please contact us.
All Cast Iron Construction 2 Cylinder V-Type Piston Compressor Pump comes with a 2-year warranty
100% Cast iron pump splash lubricated with High efficiency inter-cooler
Powder coated 80 gallons vertical air tank (ASME CERTIFIED)
30 cfm displacement, 175 psi
We include 2 Quarts of Full synthetic compressor oil, (1) Full Port Ball Valve for your tank outlet, (4) Anti-Vibration isolation pads and a manual tank drain kit.
*Professional Installation is required.
Always consult your electrician for proper installation and proper wiring

Warranty: 2 years on the cast iron pump (with proper maintenance)
1 year on all the other components

WEG Electric Motor
SCHULZ AIR COMPRESSOR 7.5HP THREE PHASE 230 VOLTS. Contact us if your incoming voltage is 208V or below.
7.5 HP motor reliably handles commercial duty demands
V-Series Cast Iron Pump
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation
Oversized Main Bearings
Sturdy & reliable
Swedish Steel Valves
Quality components contribute to pump efficiency
CNC Machined Components
Accurate fit produces top-notch performance
Notched Belts Standard
Enclosed belt guard protects the belt & operators
Powder Coated Components
Resists rust & corrosion.
1-Year Unit Warranty with 2-Year Pump Warranty.
