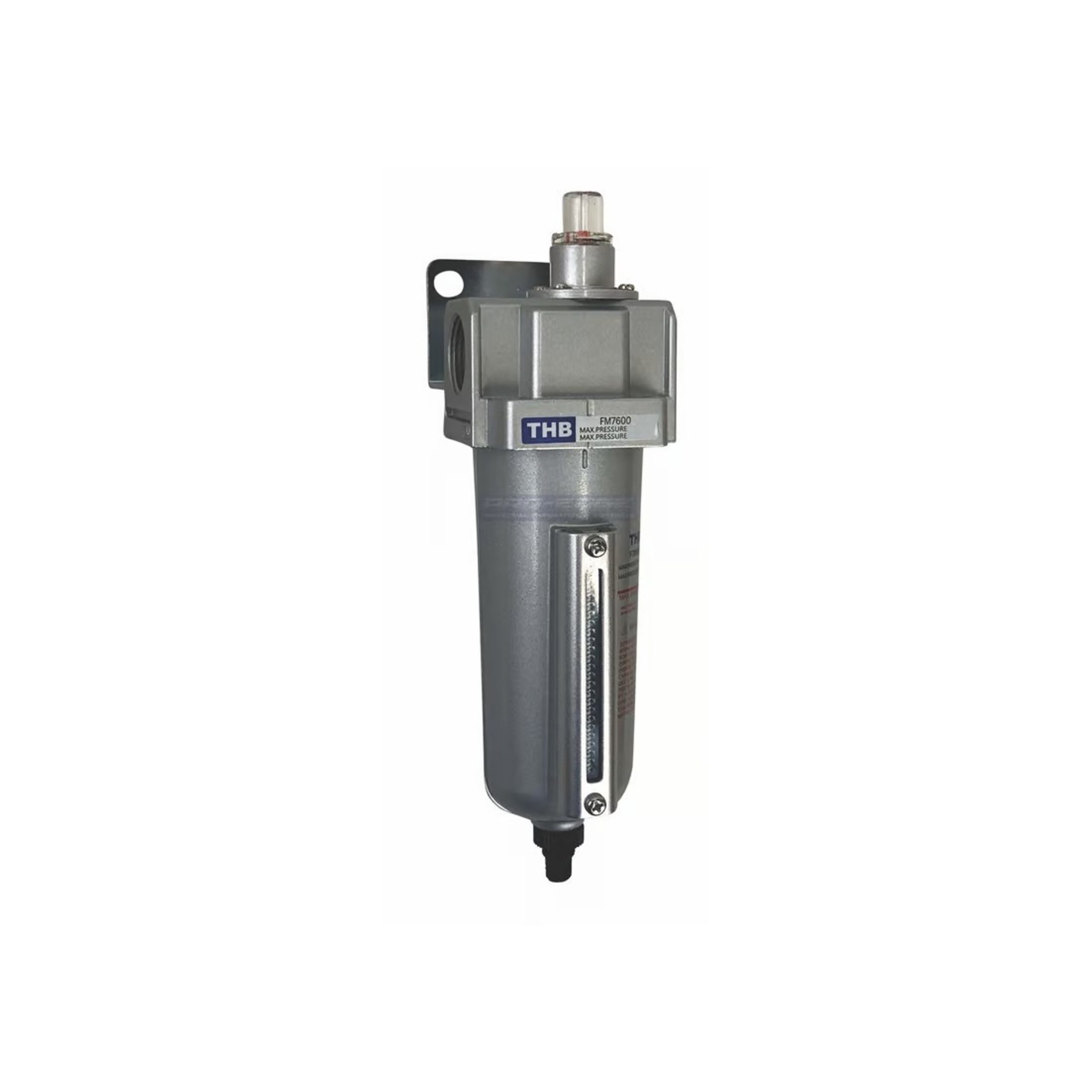

3/4″ FM7600A Series Moisture Removing Filters, 0.01µm Micron, 5oz Bowl with Auto Drain (THB)

• 1/2″ NPT, THB FM7600A, Industrial Grade Coalescing Filter. Coalescing Filters Remove Moisture, Moisture Vapor And Oil From Compressed Air Lines.
• 5 Ounce Metal Bowl, Visible Sight Glass, Automatic Internal Float Drain and 0.01µm Micron Filter Element
• 175 PSI Max Output, 175 PSI Max Input, 130 CFM Flow Rate, 8″ Height, 2-3/4″ Width
• Replacement Auto Drain Part Number D51, Replacement 0.01µm Micron Filter Element FM7607

(Pro_Tip)
Coalescing filters in compressed air systems offer several advantages:

_Removal of Fine Contaminants:
Oil and Aerosols; They effectively remove oil aerosols, which are very fine oil particles that standard particulate filters might miss. This ensures the air is free from oil contamination down to 0.01 microns or less.

_Enhanced Air Quality:
Particulate Removal; Beyond just water and oil, coalescing filters can capture extremely fine particulates that could otherwise damage or impair downstream equipment or affect product quality.

_Protection of Sensitive Equipment:
Precision Applications; For air tools, machinery, or processes requiring high-quality air (like food processing, pharmaceuticals, or painting), coalescing filters ensure the air is clean enough not to compromise the operation or product.

_Increased Equipment Lifespan:
Longevity; By removing contaminants, coalescing filters help prolong the life of air-driven tools and equipment by preventing wear and corrosion.

_Water Removal:
Additional Moisture Control; Along with oil and particulates, coalescing filters also remove liquid water, contributing to overall moisture management in the system.

_Reduced Maintenance:
Less Downtime; Cleaner air leads to less frequent maintenance of tools and machinery, reducing downtime and maintenance costs.

_Health and Safety:
Worker Safety; In environments where operators might be exposed to the air, removing oil and particulates can improve air quality, reducing health risks from inhaling contaminated air.

_Compliance with Standards:
Industry Regulations; Many industries have strict air quality requirements. Coalescing filters help meet these standards by ensuring the air is free from oil and particulates to a very high degree.

_Energy Efficiency:
Optimized System Performance; Cleaner air means compressors and air tools operate more efficiently, potentially saving energy by not having to compensate for pressure drops caused by contamination.

_Preventing Product Contamination:
Product Integrity; In applications like food, beverage, or pharmaceutical production, coalescing filters are critical to prevent any form of contamination that could affect product quality.

_Versatility in Applications:
Multiple Uses; Coalescing filters can be used not only for air but also in other gas filtration applications where purity is essential.

_Efficiency in Oil Removal:
High Efficiency; They are highly efficient at removing oil, with some models capable of reducing oil content to less than 0.01 ppm.

To maximize the benefits, it's important to:
Select the appropriate filter for the specific application, considering the required efficiency and pressure drop.
Regularly maintain and replace filter elements to ensure continued effectiveness.
Install the coalescing filter in the correct sequence (typically after a pre-filter that removes larger particles and moisture) in the compressed air system to protect the coalescing filter from premature fouling.

Using a coalescing filter is a proactive approach to ensuring the integrity of the compressed air system, which in turn supports operational efficiency, equipment longevity, and compliance with quality standards.
